Encore Performance & Fabrication
www.epfguzzi.com

Top End Parts for Older Guzzi's

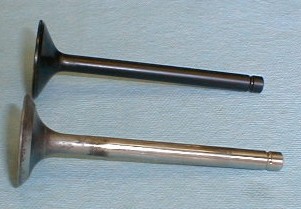

Pictured: (front)- After a standard valve grind, this Guzzi valve is still too pitted to re-use. By the time the pits are ground out, it would be better suited for use as a pizza cutter.
(rear) - It is easy to see how the new valve saves weight and has improved flow characteristics. This valve is at least 4 grams lighter than the stock valve, making it easier for the valve springs to control, and an excellent choice when going to a lumpier cam


Exhaust Valves: We use one piece stainless steel valves with Black Nitroneg impregnated stems for superior wear and friction properties. These valves are lighter than stock Guzzi valves, have better flow characteristics, and are precision made to exact tolerances. Stellite tipped.
Price: $80.00/pair
(compare to $103.11 each OEM Guzzi List Price)
13036100 EX -as Ambassador, Eldorado, V7 Sport, 850T, Convert, G5, SP, CA2
Head Diameter: 36.00 (1.417")
Stem Diameter: (.3140")
Tulip Profile: 27o
Overall Length:( 4.130")
Weight: approx. 4 grams lighter than OEM Guzzi
14036150 EX - 850 LeMans
Head Diameter: 37.10 (1.461")
Stem Diameter: (.3140")
Tulip Profile: 27o
Overall Length (4.100")
Intake Valves: Precision machined to exact tolerances, these one piece stainless steel valves have black nitroneg impregnated stems, and are stellite tipped. They are lighter than stock Guzzi valves, and have better friction, wear, and flow properties.
Price: $80.00 / Pair
(compare to $97.97 each OEM Guzzi List Price)
13036000 IN- as Ambassador, Eldorado, V7 Sport, 850T, Convert, G5, SP, CA2
Head Diameter: 41.00 (1.614")
Stem Diameter:(.3145")
Tulip Profile: 23o
Overall Length:( 4.200")
Weight: approx. 5 grams lighter than OEM Guzzi
14036150 EX - 850 LeMans
Head Diameter: 44.00 (1.732"")
Stem Diameter: (.3145")
Tulip Profile: 23o
Overall Length (4.185")

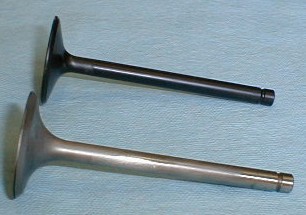

Pictured: (front) OEM Guzzi intake valve
(rear) new valve is 5 grams lighter than OEM
Valve Guides: We use valve guides machined from Ampco-45 material. This has a greater resistance to wear because of a 4-5% nickel content, and great heat conductivity due to approx. 80% copper content. Instead of a groove and a clip, these guides have a ridge machined on their outer surface.
These guides are available in the stock OD or in .002" or .015" oversize. ID is .3120" to allow them to be reamed / honed to a proper fit.
Price: $30.00 / Pair
(compare to $25.20 each OEM Guzzi List Price)

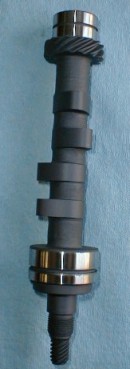

Cam: For a noticeable bump in street performance, we use a remanufactured cam which has had a hard face overlay welded to the existing lobes of a stock cam. Using the most advanced alloys, this process has proved extremely durable. The cam is then reground to a new profile.
     The grind we use usually works as a "drop in" cam, but clearances should always be checked to ensure minimum valve to piston clearance. (.050" intake, .080" exhaust), as well as valve to valve clearance.
Other numbers for this cam:
Valve lift: Intake .395" - exhaust .395"
Duration: In. 290o - ex.290o
Duration @ .050":  in. 252o - ex. 252o
Lobe Center:  in. 106o - ex. 106o
Intake opens 20o before TDC
Intake closes 52o after BDC
Exhaust opens 52o before BDC
Exhaust closes 20o after TDC
valve timing is checked with zero valve lash @.050" of valve lift
running clearances are .006" in. and ex.

Price $240.00 exchange*
*your core must be in serviceable condition

back to accessories index

Prices listed do not include tax and or shipping.
