givi 240a instructions


1. Remove 3 phillips screws around headlight bucket. Then remove headlight lense and store in a safe place.

hyosung headlight install

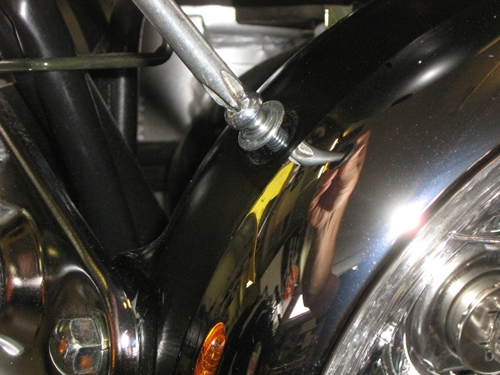

2. Remove and replace headlight mounting bolts (1 at a time) with bolts and washers supplied in package.

givi windscreen install





3. install windscreen brackets onto windscreen as described in written instructions in packaging. Side with plastic covering will face out, remove plastic from bracket before installing on windscreen.

givi installation on hyosung gt650





4. Re-install headlight lense.

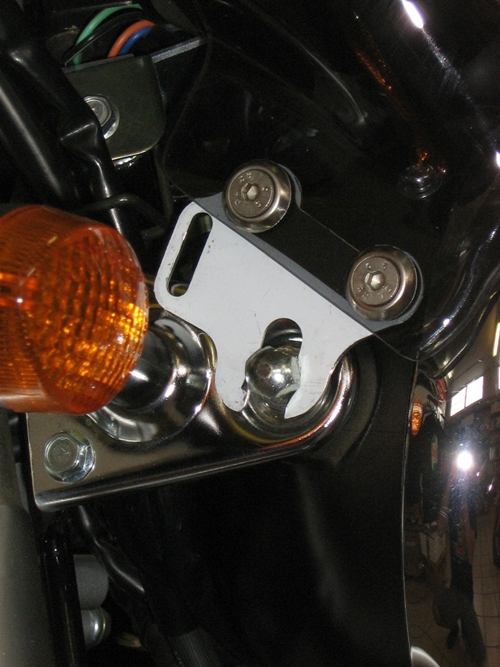

5. Loosely install windscreen onto headlight mounting bolts (do not tighten until you have the screen positioned where you want it. Make sure that bracket is between the washer on the headlight bolt and the headlight bracket.

gt screen

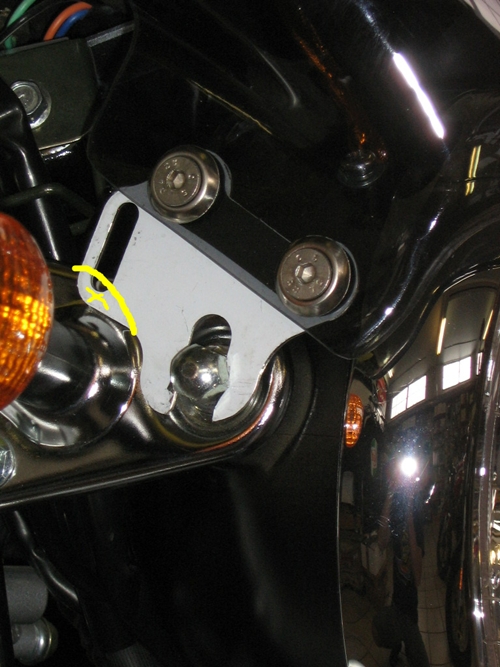

6. You may need to cut some material off of the bracket to allow the windscreen to sit at the angle you want.

cut bracket





7. Tighten headlight bolts and finish installation per instructions in packaging.
